GRASSHOPPER WORKSHOP

RUN BY: ALEX MIZUI

This workshop was an introduction to digital 3D modelling and visualisations through modelling software Grasshopper.

After creating a 75x75 rectangle select planarsrf

Raise the surface by 15 and rebuild with 10 points at each U and V and select pointson

Drag down by 15 the surrounding 2 points and by 10 some other points

4. Open Grasshopper, select surface and link that surfact to the existing surface on rhino

Open Grasshopper, select surface and link that surfact to the existing surface on rhino by set one surface

Create a new layer called glass, move the rhino surface there and turn off the layer

6. On grasshopper select BrepWireframe and connect density to number slider 1 and Brep to

On grasshopper select BrepWireframe and connect density to number slider 1 and Brep to surface

7. Select Extrude and UnitZ and connect Wireframe of Brep Wireframe to Base of Extrude, th

Select Extrude and UnitZ and connect Wireframe of Brep Wireframe to Base of Extrude, the Direction of extrude to Unit vector of UnitZ and the factor of UnitZ to number slider 1

8. In order to create thickness in the surface select Area and Evaluate Surface and connec

In order to create thickness in the surface select Area and Evaluate Surface and connect the surface of evaluate surface and the geometry of Area to Extrusion of extrude and the centroid of area to the point of evaluate surface

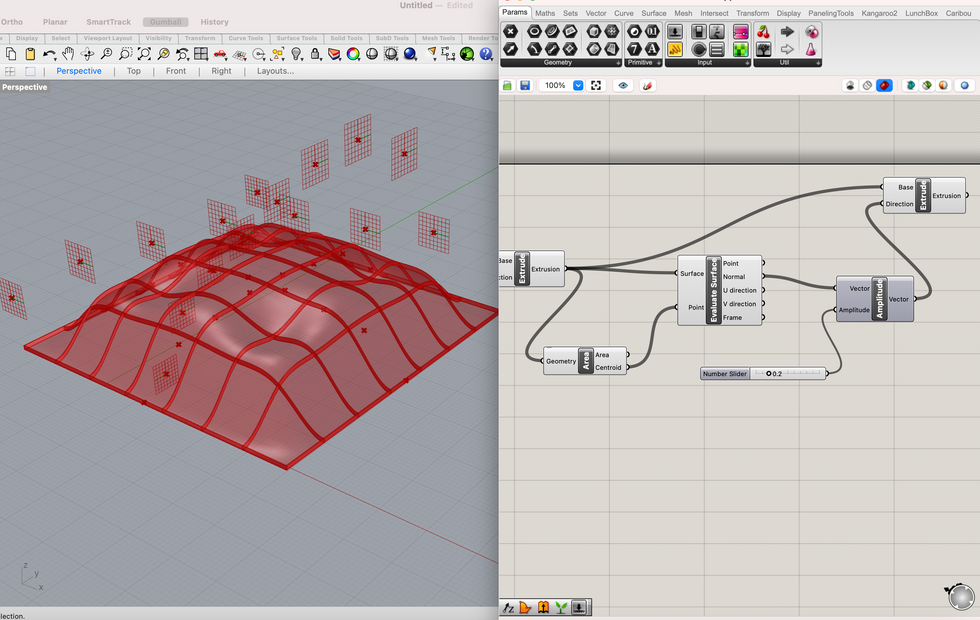

9. Select Amplitude and another extrude and connect the Base of Extrude to the first extru

Select Amplitude and another extrude and connect the Base of Extrude to the first extrusion, the direction of extrude to the vector of amplitude, the vectos of amplitude to the normal of evaluate surface and the amplitude to 0.2 number slider

Select all componects except last one and make the as preview off

Create a new layer in Rhino

12. Right click on the last component on Grasshopper and select Bake into the new layer yo

Right click on the last component on Grasshopper and select Bake into the new layer you created in Rhino

Finished model in Rhino
